事件触发
React中对于合成事件的触发不是触发在目标对象上，而是通过事件委托的方式，将事件的触发统一放到FiberRootNode根节点上，然后根据 target['__reactFiber$' + randomKey] 获取目标 FiberNode 节点实例对象，再通过向上遍历的方式获取到从目标节点到Root上注册的此事件的listener对象，从而构建出整个事件流，最后通过processDispatchQueue对事件进行回调执行。
所有事件触发的核心方法都是 dipatchEvent 函数
dipatchEvent
从上面我们也就可以大体了解React事件的执行流程了，主要分为以下步骤
- 根据target抹平平台差异获取到真正的 target对象
- 根据target(DOM)获取到completeWork阶段缓存到DOM节点上的 目标元素的 FiberNode 对象
- 通过FiberNode.return循环遍历出这个链上注册事件的 listener 对象
- 按照事件的
Capture的不同或从前到后 或 从后到前遍历执行 listener
同时我们也要知道React合成事件的特点：
- React事件的池化
- React的事件event对象是共享的，在事件执行完成后就会被销毁
attemptToDispatchEvent()
其主要作用是：
获取事件的 target , 兼容性处理 IE 为 srcElement
获取目标元素对应的 FiberNode 对象，并做一定的处理
- 如果是有插入Placement副作用的元素节点， targetInst = null
- 如果是 HostRoot 根节点，return 单独处理
- 如果是 SuspenseComponent 类型的节点 获取其 suspenseState.dehydrated
js
// Attempt dispatching an event. Returns a SuspenseInstance or Container if it's blocked.
/**
* 其任务是
* 1. 获取事件的 target , 兼容性处理 IE 为 srcElement
* 2. 获取目标元素对应的 FiberNode 对象，并做一定的处理
* - 如果是有插入Placement副作用的元素节点， targetInst = null
* - 如果是 HostRoot 根节点，return 单独处理
* - 如果是 SuspenseComponent 类型的节点 获取其 suspenseState.dehydrated
*
* 触发 dispatchEventForPluginEventSystem()
* @param {*} domEventName
* @param {*} eventSystemFlags
* @param {*} targetContainer
* @param {*} nativeEvent
* @returns
*/
export function attemptToDispatchEvent(
domEventName: DOMEventName,
eventSystemFlags: EventSystemFlags,
targetContainer: EventTarget,
nativeEvent: AnyNativeEvent,
): null | Container | SuspenseInstance {
// TODO: Warn if _enabled is false.
// 获取事件的 target , 兼容性处理 IE 为 srcElement
const nativeEventTarget = getEventTarget(nativeEvent);
// 获取目标元素对应的FiberNode实例对象
// 取巧的方式 在completeWork创建DOM的过程中会将其FiberNode对象缓存到DOM的"__reactFiber$h7mblvmf5m"属性上
let targetInst = getClosestInstanceFromNode(nativeEventTarget);
// 对于目标FiberNode 进行判断
// 1. 是否为有插入effect的元素节点 ，还没有插入到浏览器 怎么触发事件
// 2. SuspenseComponent 类型的
if (targetInst !== null) {
const nearestMounted = getNearestMountedFiber(targetInst);
if (nearestMounted === null) {
// This tree has been unmounted already. Dispatch without a target.
targetInst = null;
} else {
const tag = nearestMounted.tag;
if (tag === SuspenseComponent) {
const instance = getSuspenseInstanceFromFiber(nearestMounted);
if (instance !== null) {
// Queue the event to be replayed later. Abort dispatching since we
// don't want this event dispatched twice through the event system.
// TODO: If this is the first discrete event in the queue. Schedule an increased
// priority for this boundary.
return instance;
}
// This shouldn't happen, something went wrong but to avoid blocking
// the whole system, dispatch the event without a target.
// TODO: Warn.
targetInst = null;
} else if (tag === HostRoot) {
const root: FiberRoot = nearestMounted.stateNode;
if (root.hydrate) {
// If this happens during a replay something went wrong and it might block
// the whole system.
return getContainerFromFiber(nearestMounted);
}
targetInst = null;
} else if (nearestMounted !== targetInst) {
// If we get an event (ex: img onload) before committing that
// component's mount, ignore it for now (that is, treat it as if it was an
// event on a non-React tree). We might also consider queueing events and
// dispatching them after the mount.
targetInst = null;
}
}
}
// 进行相关事件任务的调度
dispatchEventForPluginEventSystem(
domEventName,
eventSystemFlags,
nativeEvent,
targetInst,
targetContainer,
);
// We're not blocked on anything.
return null;
}
dispatchEventForPluginEventSystem()
其主要作用是：
- 处理目标元素为Potal类型组件的事件
- 按照批量更新的方式 调度 dispatchEventsForPlugins
js
/**
* 核心任务是
* 1. 处理Potal类型组件的事件
* 2. 按照批量更新的方式 调度 dispatchEventsForPlugins
*
* @param {*} domEventName
* @param {*} eventSystemFlags
* @param {*} nativeEvent
* @param {*} targetInst
* @param {*} targetContainer
* @returns
*/
export function dispatchEventForPluginEventSystem(
domEventName: DOMEventName,
eventSystemFlags: EventSystemFlags,
nativeEvent: AnyNativeEvent,
targetInst: null | Fiber,
targetContainer: EventTarget,
): void {
let ancestorInst = targetInst;
if (
(eventSystemFlags & IS_EVENT_HANDLE_NON_MANAGED_NODE) === 0 &&
(eventSystemFlags & IS_NON_DELEGATED) === 0
) {
const targetContainerNode = ((targetContainer: any): Node);
// If we are using the legacy FB support flag, we
// defer the event to the null with a one
// time event listener so we can defer the event.
if (
enableLegacyFBSupport &&
// If our event flags match the required flags for entering
// FB legacy mode and we are prcocessing the "click" event,
// then we can defer the event to the "document", to allow
// for legacy FB support, where the expected behavior was to
// match React < 16 behavior of delegated clicks to the doc.
domEventName === 'click' &&
(eventSystemFlags & SHOULD_NOT_DEFER_CLICK_FOR_FB_SUPPORT_MODE) === 0
) {
deferClickToDocumentForLegacyFBSupport(domEventName, targetContainer);
return;
}
if (targetInst !== null) {
let node = targetInst;
mainLoop: while (true) {
if (node === null) {
return;
}
const nodeTag = node.tag;
if (nodeTag === HostRoot || nodeTag === HostPortal) {
let container = node.stateNode.containerInfo;
if (isMatchingRootContainer(container, targetContainerNode)) {
break;
}
if (nodeTag === HostPortal) {
// The target is a portal, but it's not the rootContainer we're looking for.
// Normally portals handle their own events all the way down to the root.
// So we should be able to stop now. However, we don't know if this portal
// was part of *our* root.
let grandNode = node.return;
while (grandNode !== null) {
const grandTag = grandNode.tag;
if (grandTag === HostRoot || grandTag === HostPortal) {
const grandContainer = grandNode.stateNode.containerInfo;
if (
isMatchingRootContainer(grandContainer, targetContainerNode)
) {
// This is the rootContainer we're looking for and we found it as
// a parent of the Portal. That means we can ignore it because the
// Portal will bubble through to us.
return;
}
}
grandNode = grandNode.return;
}
}
// Now we need to find it's corresponding host fiber in the other
// tree. To do this we can use getClosestInstanceFromNode, but we
// need to validate that the fiber is a host instance, otherwise
// we need to traverse up through the DOM till we find the correct
// node that is from the other tree.
while (container !== null) {
const parentNode = getClosestInstanceFromNode(container);
if (parentNode === null) {
return;
}
const parentTag = parentNode.tag;
if (parentTag === HostComponent || parentTag === HostText) {
node = ancestorInst = parentNode;
continue mainLoop;
}
container = container.parentNode;
}
}
node = node.return;
}
}
}
batchedEventUpdates(() =>
dispatchEventsForPlugins(
domEventName,
eventSystemFlags,
nativeEvent,
ancestorInst,
targetContainer,
),
);
}dispatchEventsForPlugins()
之前的方法都是对依赖对象的处理和判断，这个才是事件触发的核心过程
js
/**
* 真正的调度任务了
* @param {} domEventName
* @param {*} eventSystemFlags
* @param {*} nativeEvent
* @param {*} targetInst
* @param {*} targetContainer
*/
function dispatchEventsForPlugins(
domEventName: DOMEventName,
eventSystemFlags: EventSystemFlags,
nativeEvent: AnyNativeEvent,
targetInst: null | Fiber,
targetContainer: EventTarget,
): void {
// 获取target
const nativeEventTarget = getEventTarget(nativeEvent);
// 存放 事件调度任务的队列 -
const dispatchQueue: DispatchQueue = [];
// 获取目标对象到root链路上注册的事件，并保存到dispatchQueue队列中
extractEvents(
dispatchQueue,
domEventName,
targetInst,
nativeEvent,
nativeEventTarget,
eventSystemFlags,
targetContainer,
);
processDispatchQueue(dispatchQueue, eventSystemFlags);
}
extractEvents()
这个就涉及到事件的插件机制
其主要流程是：
在插件初始化的时候会通过高阶函数的方式生成不同类型的事件其event实例对象构造方法
SyntheticMouseEventSyntheticDragEventSyntheticKeyboardEventSyntheticPointerEventSyntheticTouchEventSyntheticTransitionEventSyntheticWheelEvent...
根据事件的名称获取其对应的event实例对象构造方法
通过向上遍历的方式生成从targetInst到Root这个链上注册事件的 listener 对象
实例化一个
SyntheticEventCtor 对象(这条链上事件回调函数公用)生成
DispatchQueue
合成事件对象构造方法
我们先简单看一下 mouse类型的事件其构造方法为通过 createSyntheticEvent(MouseEventInterface) 生成，其核心是通过createSyntheticEvent()中的SyntheticBaseEvent去生成所有的事件共有的属性和方法，然后通过不同的事件类型提供的interface去拓展各自的事件实例对象 SyntheticEvent
我们看一下SyntheticBaseEvent()
js
/**
* 所有合成事件Event对象的基类
* @param {*} reactName 事件在React定义的名称 如 onClick
* @param {*} reactEventType 事件的原生类型 click
* @param {*} targetInst 事件的目标元素的FiberNode对象
* @param {*} nativeEvent 事件的目标元素的 原生 事件对象
* @param {*} nativeEventTarget 事件目标元素的 原生 e.target 对象
* @returns
*/
function SyntheticBaseEvent(
reactName: string | null,
reactEventType: string,
targetInst: Fiber,
nativeEvent: {[propName: string]: mixed},
nativeEventTarget: null | EventTarget,
) {
this._reactName = reactName;
this._targetInst = targetInst;
this.type = reactEventType;
this.nativeEvent = nativeEvent;
this.target = nativeEventTarget;
this.currentTarget = null;
for (const propName in Interface) {
if (!Interface.hasOwnProperty(propName)) {
continue;
}
const normalize = Interface[propName];
if (normalize) {
this[propName] = normalize(nativeEvent);
} else {
this[propName] = nativeEvent[propName];
}
}
const defaultPrevented =
nativeEvent.defaultPrevented != null
? nativeEvent.defaultPrevented
: nativeEvent.returnValue === false;
if (defaultPrevented) {
this.isDefaultPrevented = functionThatReturnsTrue;
} else {
this.isDefaultPrevented = functionThatReturnsFalse;
}
this.isPropagationStopped = functionThatReturnsFalse;
return this;
}
Object.assign(SyntheticBaseEvent.prototype, {
// 提供统一的合成事件的 阻止默认行为的方法
preventDefault: function() {
this.defaultPrevented = true;
const event = this.nativeEvent;
if (!event) {
return;
}
if (event.preventDefault) {
event.preventDefault();
// $FlowFixMe - flow is not aware of `unknown` in IE
} else if (typeof event.returnValue !== 'unknown') {
event.returnValue = false;
}
this.isDefaultPrevented = functionThatReturnsTrue;
},
// 提供统一的合成事件的 阻止冒泡或者捕获的方法
stopPropagation: function() {
const event = this.nativeEvent;
if (!event) {
return;
}
if (event.stopPropagation) {
event.stopPropagation();
// $FlowFixMe - flow is not aware of `unknown` in IE
} else if (typeof event.cancelBubble !== 'unknown') {
event.cancelBubble = true;
}
this.isPropagationStopped = functionThatReturnsTrue;
},
persist: function() {
// Modern event system doesn't use pooling.
},
isPersistent: functionThatReturnsTrue,
});
我们先看简单类型的事件
简单事件类型
js
/**
* 简单事件插件的 提取任务对象的方法
*
* 1. 根据事件类型获取初始化（高阶函数返回的事件event Class对象）
* 2. accumulateSinglePhaseListeners
* 构建从目标对象到root这里链路上注册了此事件的方法
* 3. 如果有注册事件方法，那么就初始化一个统一的 event实例对象

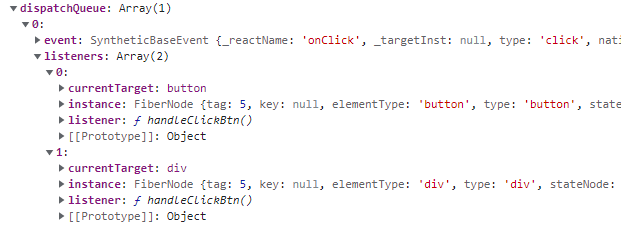

* 其存储结构为 { event , listeners : [ 事件button(DispatchListener) ， 事件div(DispatchListener) ] }
* @param {*} dispatchQueue
* @param {*} domEventName
* @param {*} targetInst
* @param {*} nativeEvent
* @param {*} nativeEventTarget
* @param {*} eventSystemFlags
* @param {*} targetContainer
* @returns
*/
function extractEvents(
dispatchQueue: DispatchQueue,
domEventName: DOMEventName,
targetInst: null | Fiber,
nativeEvent: AnyNativeEvent,
nativeEventTarget: null | EventTarget,
eventSystemFlags: EventSystemFlags,
targetContainer: EventTarget,
): void {
// 获取事件的名称
const reactName = topLevelEventsToReactNames.get(domEventName);
if (reactName === undefined) {
return;
}
let SyntheticEventCtor = SyntheticEvent;
let reactEventType: string = domEventName;
// 根据事件名称的不同 获取不同的event对象
switch (domEventName) {
case 'keypress':
// Firefox creates a keypress event for function keys too. This removes
// the unwanted keypress events. Enter is however both printable and
// non-printable. One would expect Tab to be as well (but it isn't).
if (getEventCharCode(((nativeEvent: any): KeyboardEvent)) === 0) {
return;
}
/* falls through */
case 'keydown':
case 'keyup':
SyntheticEventCtor = SyntheticKeyboardEvent;
break;
case 'focusin':
reactEventType = 'focus';
SyntheticEventCtor = SyntheticFocusEvent;
break;
case 'focusout':
reactEventType = 'blur';
SyntheticEventCtor = SyntheticFocusEvent;
break;
case 'beforeblur':
case 'afterblur':
SyntheticEventCtor = SyntheticFocusEvent;
break;
case 'click':
// Firefox creates a click event on right mouse clicks. This removes the
// unwanted click events.
if (nativeEvent.button === 2) {
return;
}
/* falls through */
case 'auxclick':
case 'dblclick':
case 'mousedown':
case 'mousemove':
case 'mouseup':
// TODO: Disabled elements should not respond to mouse events
/* falls through */
case 'mouseout':
case 'mouseover':
case 'contextmenu':
SyntheticEventCtor = SyntheticMouseEvent;
break;
case 'drag':
case 'dragend':
case 'dragenter':
case 'dragexit':
case 'dragleave':
case 'dragover':
case 'dragstart':
case 'drop':
SyntheticEventCtor = SyntheticDragEvent;
break;
case 'touchcancel':
case 'touchend':
case 'touchmove':
case 'touchstart':
SyntheticEventCtor = SyntheticTouchEvent;
break;
case ANIMATION_END:
case ANIMATION_ITERATION:
case ANIMATION_START:
SyntheticEventCtor = SyntheticAnimationEvent;
break;
case TRANSITION_END:
SyntheticEventCtor = SyntheticTransitionEvent;
break;
case 'scroll':
SyntheticEventCtor = SyntheticUIEvent;
break;
case 'wheel':
SyntheticEventCtor = SyntheticWheelEvent;
break;
case 'copy':
case 'cut':
case 'paste':
SyntheticEventCtor = SyntheticClipboardEvent;
break;
case 'gotpointercapture':
case 'lostpointercapture':
case 'pointercancel':
case 'pointerdown':
case 'pointermove':
case 'pointerout':
case 'pointerover':
case 'pointerup':
SyntheticEventCtor = SyntheticPointerEvent;
break;
default:
// Unknown event. This is used by createEventHandle.
break;
}
// 是否是捕获阶段触发的
const inCapturePhase = (eventSystemFlags & IS_CAPTURE_PHASE) !== 0;
if (
enableCreateEventHandleAPI &&
eventSystemFlags & IS_EVENT_HANDLE_NON_MANAGED_NODE
) {
// 获取目标对象及其祖先中注册了此类型事件的 listeners 数组
const listeners = accumulateEventHandleNonManagedNodeListeners(
// TODO: this cast may not make sense for events like
// "focus" where React listens to e.g. "focusin".
((reactEventType: any): DOMEventName),
targetContainer,
inCapturePhase,
);
if (listeners.length > 0) {
// Intentionally create event lazily.
// 创建一个 事件实例对象
const event = new SyntheticEventCtor(
reactName,
reactEventType,
null,
nativeEvent,
nativeEventTarget,
);
// 保存到 调度队列中
dispatchQueue.push({event, listeners});
}
} else {
// Some events don't bubble in the browser.
// In the past, React has always bubbled them, but this can be surprising.
// We're going to try aligning closer to the browser behavior by not bubbling
// them in React either. We'll start by not bubbling onScroll, and then expand.
const accumulateTargetOnly =
!inCapturePhase &&
// TODO: ideally, we'd eventually add all events from
// nonDelegatedEvents list in DOMPluginEventSystem.
// Then we can remove this special list.
// This is a breaking change that can wait until React 18.
domEventName === 'scroll';
// 通过向上遍历的方式 去构建整个事件目标链路上的 委托的事件listeneres
const listeners = accumulateSinglePhaseListeners(
targetInst,
reactName,
nativeEvent.type,
inCapturePhase,
accumulateTargetOnly,
);
if (listeners.length > 0) {
// Intentionally create event lazily.
// 生成一个公共的 event 对象
const event = new SyntheticEventCtor(
reactName,
reactEventType,
null,
nativeEvent,
nativeEventTarget,
);
dispatchQueue.push({event, listeners});
}
}
}
React事件DispatchQueue对象
对于一次事件的触发，其可以在事件冒泡或者事件捕获阶段回调好几个事件函数，那么其怎么维护原生事件流中事件从捕获到冒泡的触发机制的，这就涉及到React合成事件的DispatchQueue对象和 processDispatchQueue 派发任务执行机制
下面我们分别看如何生成DispatchQueue对象 和 任务如何进行派发执行的
- DispatchQueue对象
accumulateSinglePhaseListeners()
从源码中可见其通过 fiberNode.return去向上遍历，找到这条链路上绑定了这个事件的属性，然后通过createDispatchListener(instance, listener, lastHostComponent) 构建了一个包含
- instance FiberNode实例对象
- listener事件的回调函数
- lastHostComponent 原生DOM数据
的listener对象
js
/**
* 通过向上遍历的方式 去构建整个事件目标链路上的 委托的事件listeneres
* @param {*} targetFiber
* @param {*} reactName
* @param {*} nativeEventType
* @param {*} inCapturePhase
* @param {*} accumulateTargetOnly
* @returns DispatchListener[]
*/
export function accumulateSinglePhaseListeners(
targetFiber: Fiber | null,
reactName: string | null,
nativeEventType: string,
inCapturePhase: boolean,
accumulateTargetOnly: boolean,
): Array<DispatchListener> {
//
const captureName = reactName !== null ? reactName + 'Capture' : null;
// 事件的名称
const reactEventName = inCapturePhase ? captureName : reactName;
const listeners: Array<DispatchListener> = [];
let instance = targetFiber;
let lastHostComponent = null;
// Accumulate all instances and listeners via the target -> root path.
while (instance !== null) {
const {stateNode, tag} = instance;
// Standard React on* listeners, i.e. onClick or onClickCapture
if (reactEventName !== null) {
// 获取组件上定义的 事件 属性内容
// 如： button 组件上 onClick 的内容
const listener = getListener(instance, reactEventName);
// 如果存在
if (listener != null) {
// 加入到 事件队列中
listeners.push(
createDispatchListener(instance, listener, lastHostComponent),
);
}
}
}
if (accumulateTargetOnly) {
break;
}
// 向上循环
instance = instance.return;
}
return listeners;
}然后通过dispatchQueue.push({event, listeners}) 生成了一个当前事件回调队列共享同一个合成事件Event对象的队列。
React事件派发执行的过程
主要是通过
- 捕获类型的事件 从后向前遍历执行
- 冒泡类型的事件 从前先后遍历执行
去维护事件冒泡和捕获的执行顺序的
通过同一个事件执行过程生成一个 dispatchQueue并共享一个event对象，在事件回调执行前 currentTarget = currentTarget 和执行后 currentTarget = null 去维护合成事件对象的共享和区分的。
这边还涉及到例外一个问题。
事件的冒泡和事件捕获其实不是一个事件。
如click事件，在捕获阶段其事件名称为onClickCapture 在冒泡阶段才是 onClick
js
/**
* 回调执行事件
* 通过将 执行前 currentTarget = currentTarget
* 执行前 currentTarget = null
* 去共享一个合成事件对象
* @param {*} event
* @param {*} listener
* @param {*} currentTarget
*/
function executeDispatch(
event: ReactSyntheticEvent,
listener: Function,
currentTarget: EventTarget,
): void {
const type = event.type || 'unknown-event';
// 修改event对象的目标对象为本身
event.currentTarget = currentTarget;
// 回调事件方法
invokeGuardedCallbackAndCatchFirstError(type, listener, undefined, event);
// 重置 currentTarget
event.currentTarget = null;
}
/**
* 派发事件执行的过程
* 1. 捕获类型的事件 从后向前遍历执行
* 2. 冒泡类型的事件 从前先后遍历执行
*
* @param {*} event
* @param {*} dispatchListeners
* @param {*} inCapturePhase
* @returns
*/
function processDispatchQueueItemsInOrder(
event: ReactSyntheticEvent,
dispatchListeners: Array<DispatchListener>,
inCapturePhase: boolean,
): void {
let previousInstance;
if (inCapturePhase) {
// 捕获类型的事件 从后向前遍历执行
for (let i = dispatchListeners.length - 1; i >= 0; i--) {
// 获取事件执行 DispatchListener
const {instance, currentTarget, listener} = dispatchListeners[i];
// 如果执行了 event.isPropagationStopped() 就停止向下捕获
if (instance !== previousInstance && event.isPropagationStopped()) {
return;
}
executeDispatch(event, listener, currentTarget);
previousInstance = instance;
}
} else {
// 冒泡类型的事件 从前先后遍历执行
for (let i = 0; i < dispatchListeners.length; i++) {
const {instance, currentTarget, listener} = dispatchListeners[i];
// 如果执行了 event.isPropagationStopped() 就停止向上冒泡
if (instance !== previousInstance && event.isPropagationStopped()) {
return;
}
executeDispatch(event, listener, currentTarget);
previousInstance = instance;
}
}
}
