Flags

标记FiberNode节点上副作用的类型(DOM的操作、useEffect的副作用)

/**
 * 二级制位 标志DOM更新的类型
 *
 *  在commit阶段 通过按位与的方式判断当前effect上是否存在那种类型的更新
 *
 */
export type Flags = number;

// Don't change these two values. They're used by React Dev Tools.
export const NoFlags = /*                      */ 0b000000000000000000;
export const PerformedWork = /*                */ 0b000000000000000001;

// You can change the rest (and add more).
// DOM元素 插入
export const Placement = /*                    */ 0b000000000000000010;
// DOM元素 更新
export const Update = /*                       */ 0b000000000000000100;
// DOM元素 更新且插入
export const PlacementAndUpdate = /*           */ 0b000000000000000110;
// DOM元素 删除
export const Deletion = /*                     */ 0b000000000000001000;
export const ContentReset = /*                 */ 0b000000000000010000;
export const Callback = /*                     */ 0b000000000000100000;
export const DidCapture = /*                   */ 0b000000000001000000;
export const Ref = /*                          */ 0b000000000010000000;
export const Snapshot = /*                     */ 0b000000000100000000;
export const Passive = /*                      */ 0b000000001000000000;


// TODO (effects) Remove this bit once the new reconciler is synced to the old.
export const PassiveUnmountPendingDev = /*     */ 0b000010000000000000;
export const Hydrating = /*                    */ 0b000000010000000000;
export const HydratingAndUpdate = /*           */ 0b000000010000000100;

// Passive & Update & Callback & Ref & Snapshot
export const LifecycleEffectMask = /*          */ 0b000000001110100100;

// Union of all host effects
export const HostEffectMask = /*               */ 0b000000011111111111;

// These are not really side effects, but we still reuse this field.
export const Incomplete = /*                   */ 0b000000100000000000;
export const ShouldCapture = /*                */ 0b000001000000000000;
export const ForceUpdateForLegacySuspense = /* */ 0b000100000000000000;

// Static tags describe aspects of a fiber that are not specific to a render,
// e.g. a fiber uses a passive effect (even if there are no updates on this particular render).
// This enables us to defer more work in the unmount case,
// since we can defer traversing the tree during layout to look for Passive effects,
// and instead rely on the static flag as a signal that there may be cleanup work.
export const PassiveStatic = /*                */ 0b001000000000000000;

// Union of side effect groupings as pertains to subtreeFlags
export const BeforeMutationMask = /*           */ 0b000000001100001010;
export const MutationMask = /*                 */ 0b000000010010011110;
export const LayoutMask = /*                   */ 0b000000000010100100;
export const PassiveMask = /*                  */ 0b000000001000001000;

// Union of tags that don't get reset on clones.
// This allows certain concepts to persist without recalculting them,
// e.g. whether a subtree contains passive effects or portals.
export const StaticMask = /*                   */ 0b001000000000000000;

// These flags allow us to traverse to fibers that have effects on mount
// without traversing the entire tree after every commit for
// double invoking
export const MountLayoutDev = /*               */ 0b010000000000000000;
export const MountPassiveDev = /*              */ 0b100000000000000000;

在render阶段的beginWork过程，会对产生副作用的节点进行标记。 如当前节点DOM元素是新的，那就标记为 Placement(flags === 0b000000000000000010)

在completeWork的过程，利于向上聚合的方式。

• 一方面收集当前节点下子孙节点的副作用(subtreeFlags)

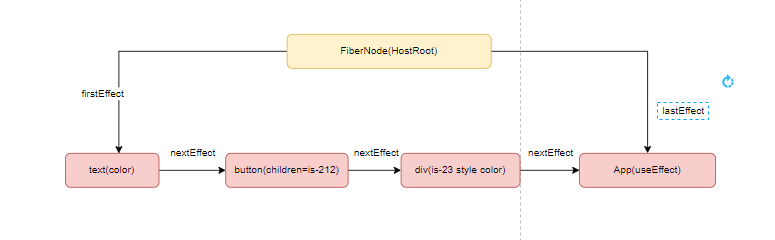

• React16的时候通过一个单向链表结构的副作用 Effect List，并聚合到FiberRoot上。 这个链表有关的字段为 firstEffect 、lastEffect、nextEffect

​

‍
